Horizontal Ice Popsicle Flow Wrapping Packing Machine

The flow packaging machine equipment is the center of the flow packaging process. Packaging with automatic horizontal flow packaging machines is a very high speed operation where large numbers of small products are transported along the production line on conveyor belts. Horizontal flow packing machines pack them individually in clear or highly decorated plastic or metalized films, and place them in multi-product form-fill packs for sale. The automatic food packaging machine is flow packaging system for food industry, such as bakery, candy, rice bar, caramel treats, chocolate bar, mammon, moon cake, wafer, egg roller, biscuit, cracker biscuit and cookie.
Availability:
Quantity:
Inquire Add to Basket

  • UPK-BG250

  • friendpack

Product Recommend

Up-paper Film Rotary Series

BG-250

UPK-BG250

BG-250冰棒包装机

UPK-BG250 Ice Popsicle

BG-320

UPK-BG320

BG-350

UPK-BG350

BG-400

UPK-BG400

BG-450

UPK-BG450D

BG-450W 600W

UPK-BG450W/600W

BG-600D

UPK-BG600D

Down Film Rotary Series

BG-250X

UPK-BG250X

BG-350X

UPK-BG350X

BG-350XPE

UPK-BG350XPE

BG-350XSF

UPK-BG350XSF

BG-350XW

UPK-BG350XW

BG-450X

UPK-BG450X

BG-600XD

UPK-BG600XD

BG-600XW

UPK-BG600XW

BG-700X

UPK-BG700X

BG-800XD

UPK-BG800XD




Product Description

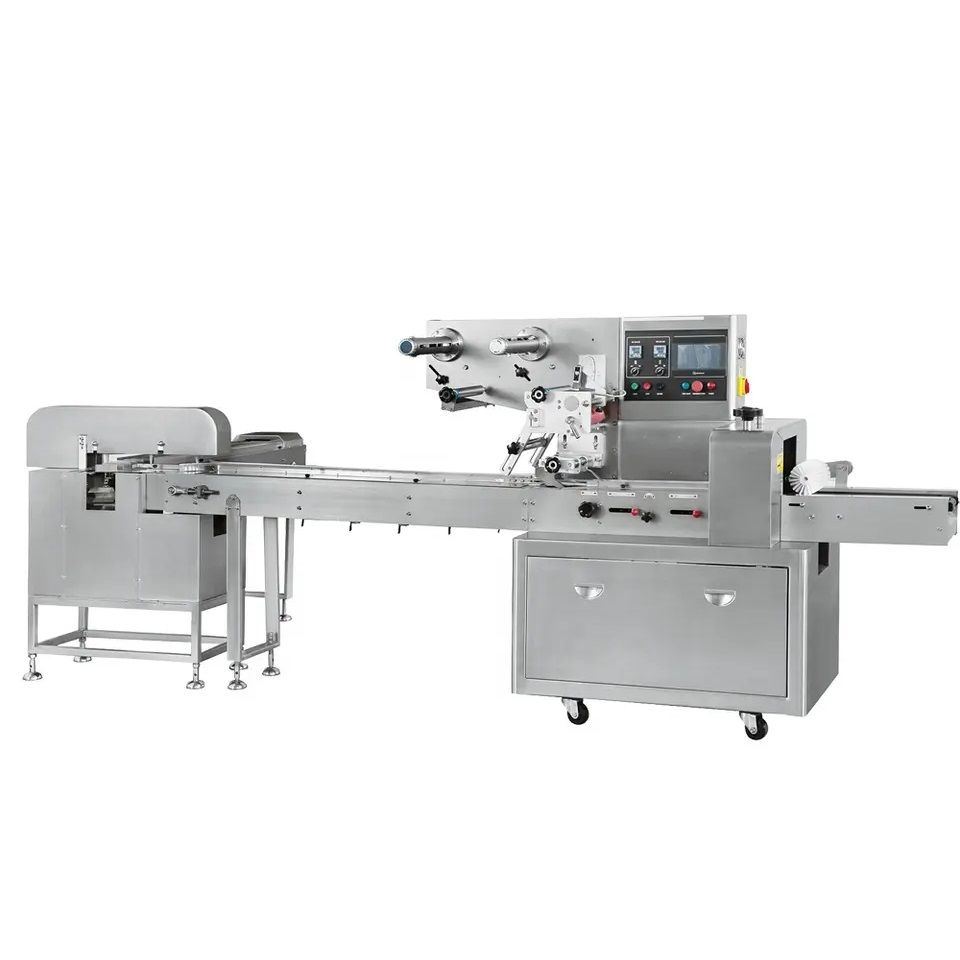

BG-250 冰棒包装机

Product Parameters


ModelUPK-BG250BUPK-BG250D
Film widthMax.240mmMax.240mm
Bag length65-180mm90-220mm
Bag width30-110mm30-110mm
Product heightMax.40mmMax.55mm
Film roll diameterMax.320mmMax.320mm
Packing speed40-230bag/min40-230bag/min
Power specification220V, 50/60HZ, 2.4KW
220V, 50/60HZ, 2.4KW
Machine size3624*670*1412mm3624*670*1412mm
Machine weight800kg800kg

Main performance and structure features:

1. Double motor, double Panasonic transducer and PLC controller,flexible bag length setting and cutting,saving time and film.
2. human-machine interface, convenient and quick parameter settings.
3. Self diagnosis failure function, failure displayed clearly.
4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5. Separated PID control system for temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7. Simple driving system, reliable working, convenient maintenance.
8. All controled by program, convenient for function adjusting and upgrading.
