Autoamtic Horizontal Food Biscuit Candy Flow Wrapping Machine Horizontal Form Fill Seal Flow Wrapper Packaging Machine

Share to:

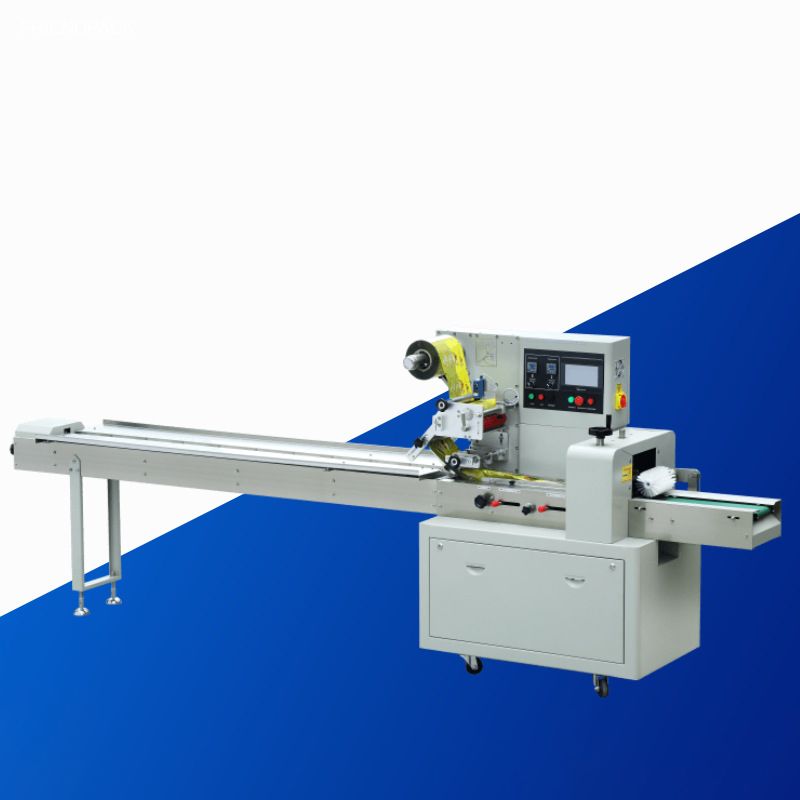

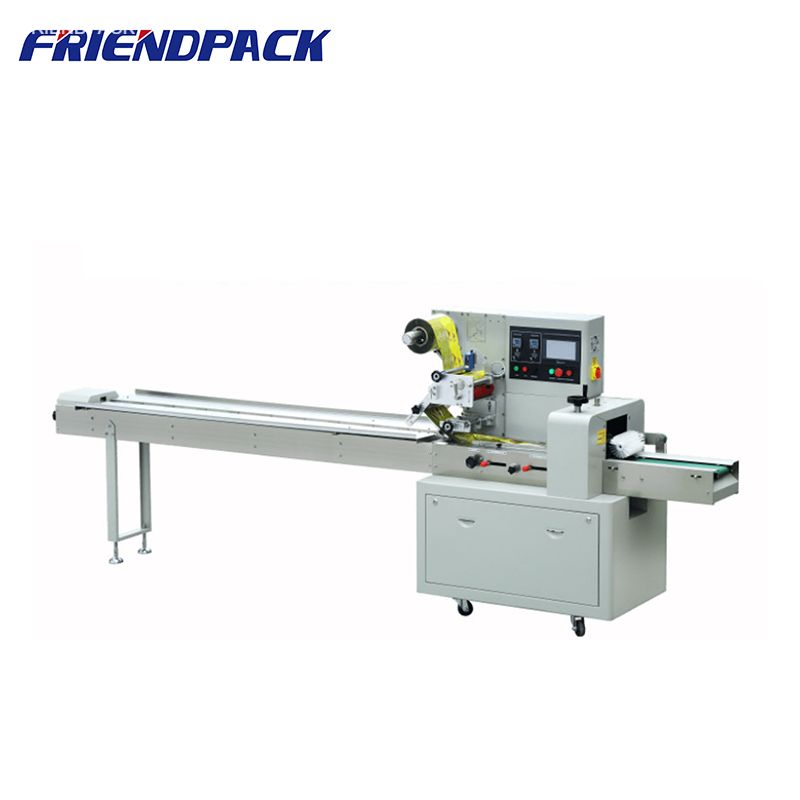

Autoamtic Horizontal Food Biscuit Candy Flow Wrapping Machine Horizontal Form Fill Seal Flow Wrapper Packaging Machine

The UPK-BG320 food packaging machine adopts an upward film structure, which is very suitable for automatic food packaging machines, such as biscuits, candies, instant noodles, ice cream, chocolate, peanut candy and other food packaging.

Availability:

Quantity:



Inquire Add to Basket

Model:
UPK-BG320
Brand:
friendpack

Product Description

导航栏-4 导航栏-5 BG-320

Product Information

Product Parameters

Model	UPK-BG320B	UPK-BG320D
Film width	Max.320mm	Max.320mm
Bag length	65-190mm	90-220mm
Bag width	50-145mm	50-145mm
Product height	Max.45mm	Max.60mm
Film roll diameter	Max.320mm	Max.320mm
Packing speed	40-230bag/min	40-230bag/min
Power specification	220V, 50/60HZ, 2.4KW	220V, 50/60HZ, 2.4KW
Machine size	37616701412mm	37616701412mm
Machine weight	500kg	500kg

Main performance and structure features:

1. Double motor, double Panasonic transducer and PLC controller,flexible bag length setting and cutting,saving time and film.
2. human-machine interface, convenient and quick parameter settings.
3. Self diagnosis failure function, failure displayed clearly.
4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5. Separated PID control system for temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7. Simple driving system, reliable working, convenient maintenance.
8. All controled by program, convenient for function adjusting and upgrading.

Autoamtic Horizontal Food Biscuit Candy Flow Wrapping Packing Machine Automatic Flow Packing Wrapping Machine for Food Biscuit Candy Flow wrappers Equipment Horizontal Form Fill Seal Flow Packaging Machine
