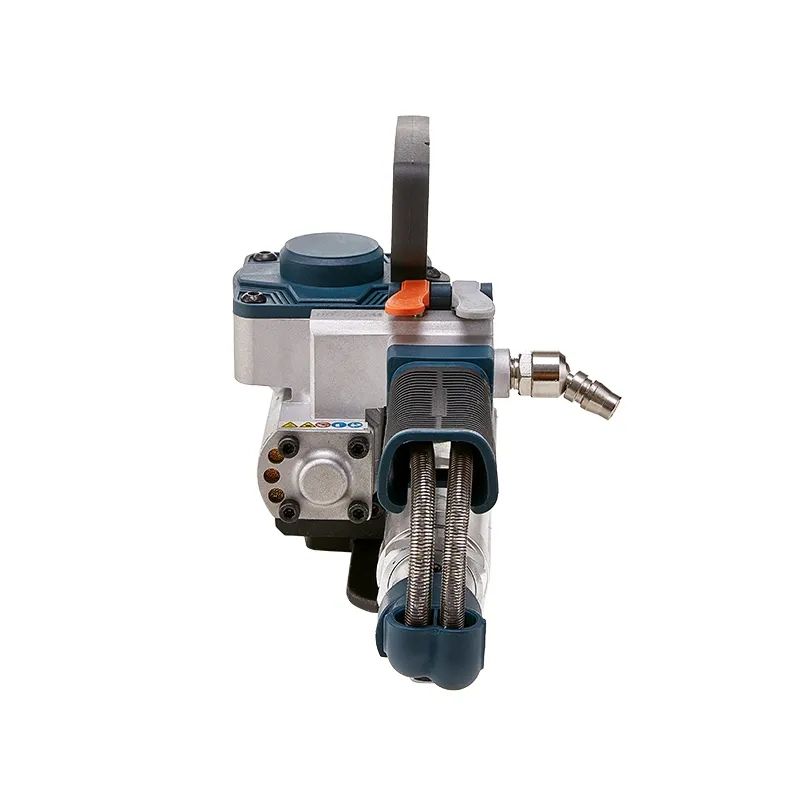

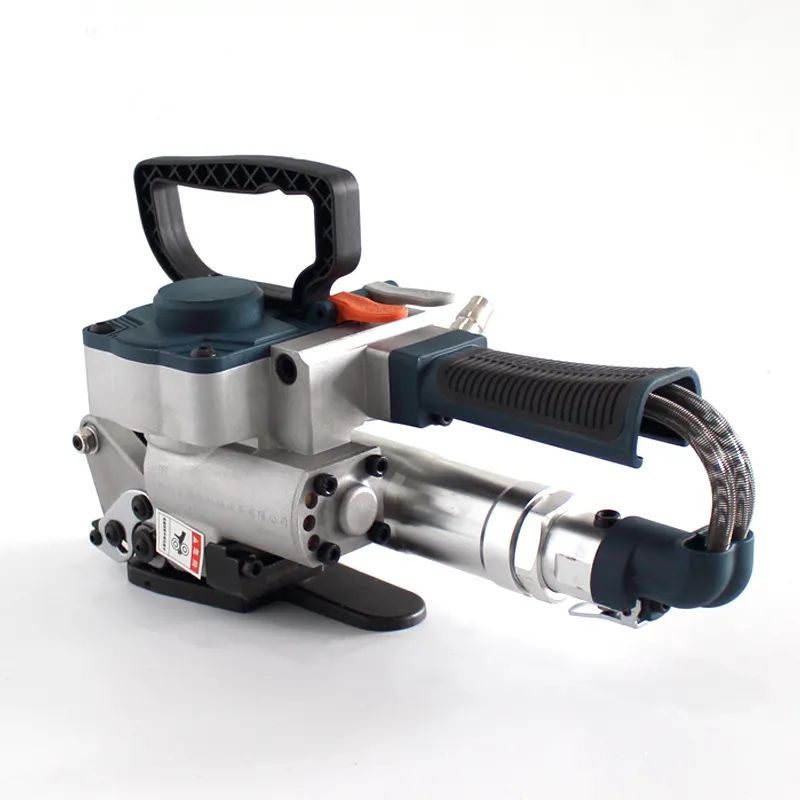

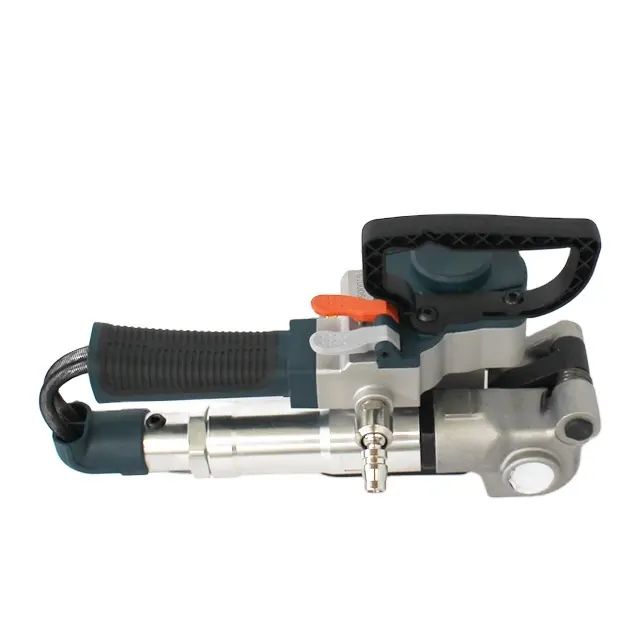

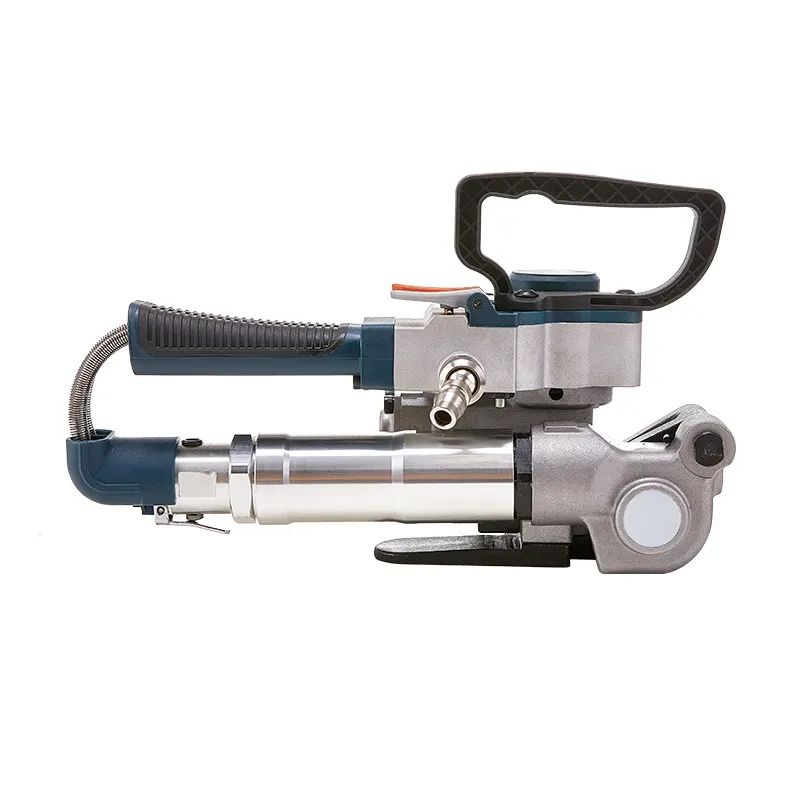

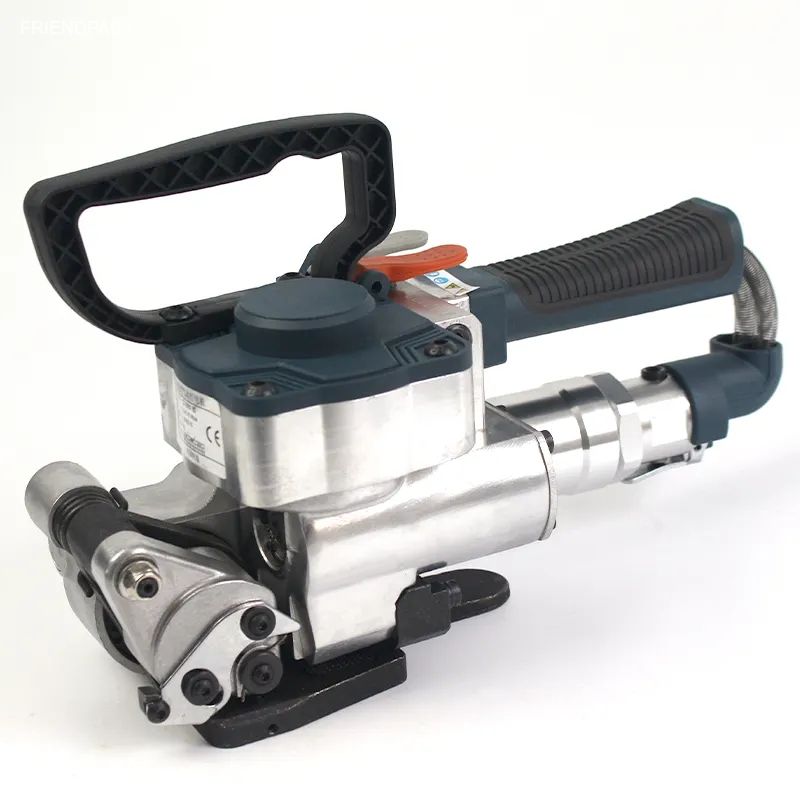

B19 Pneumatic Strapping Tool Packaging Strapping Machine PP PET Belt Handheld Strapping Machine

Apply straps: PP/PET

Strap size: W 13/16/19mm

T 0.5-1.2mm

Air pressure: 0.5-0.8MPa

Forward mode: Free separate

Seal straps form: Friction and hot welding

Maximum tension force: 3500N

Weight: 3.8kg

Machine size: 28*16*18cm

Availability:

Quantity:



Inquire Add to Basket

Model:
B19
Brand:
friendpack

Product Description

Product Parameter

Model	A19	CA19	A25	B19
Air pressure	0.5-0.8MPa	0.5-0.8MPa	0.5-0.8MPa	0.5-0.8MPa
Tension force	3500N	3500N	3500N	3500N
Applicable packing belt	PP/PET	PP/PET	PP/PET	PP/PET
Tape width	13/16/19mm	13/16/19mm	19/25mm	13/16/19mm
Tape thickness	0.5-1.2mm	0.5-1.2mm	0.5-1.5mm	0.5-1.2mm
Welding time	2-5s	1-3s	2-5s	1-3s
Compressed air consumption	0.3L/min	0.3L/min	0.3L/min	0.3L/min
Machine size	281618cm	281618cm	281618cm	3014.917.3cm
Machine weight	3.82kg	3.82kg	3.82kg	3.65kg

Tape of A19/A25

Wearing method: separate the upper and lower belts

Welding speed: 3-5 seconds

Cutting mode: cutting

Tape of B19/B25/CA19/CA25

Threading method: no need to separate the upper and lower tape

Welding speed: 1-3 seconds

Cutting mode: sawing

Product Characteristics

Air pumpquick connector

Use excellent alloy material,the connector is more efficient and more wear-resistant, making the equipment more stable and longer use.

Easy to operate

After the strapped belt is ready, press the tighten button, tighten it and release it, then press the fuse button until the strap is welded and cut

Special silence device

In order to ensure that the equipment does not produce noise during operation, a special noise elimination device is selected. The noise of the machine vibrator is greatly reduced.

Rewind button settings

After packing, press and hold the rewind button by hand until the packing belt is sent from the tension wheel to remove the packer.

Fixed cutter blank

Remove the spring tip on the fixed cutter, and then the ctter baffle of the fixed blade can be reinstalled. The compression spring is installed in the slice handle plate.
