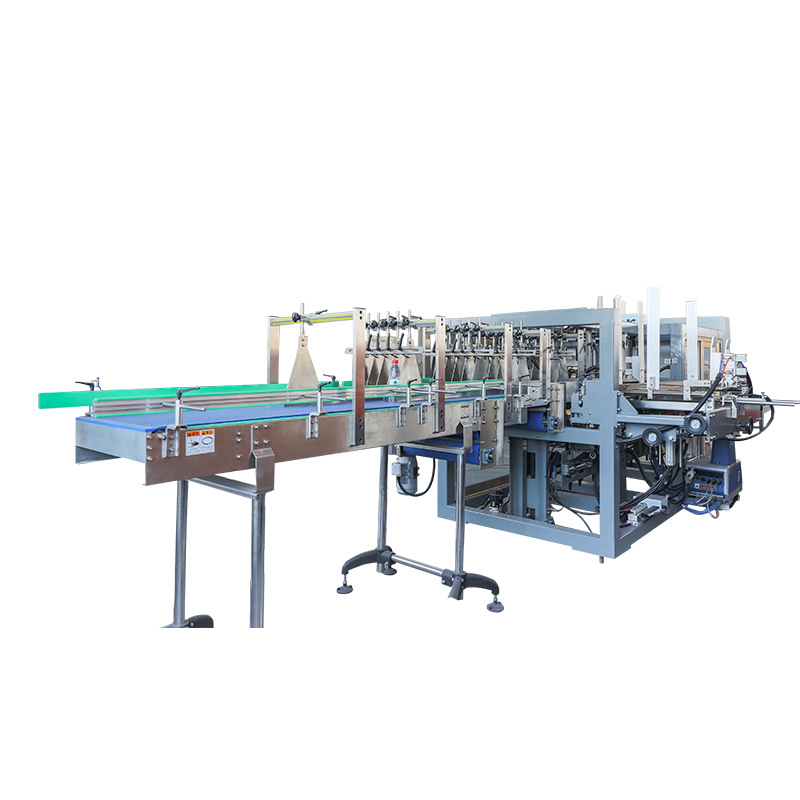

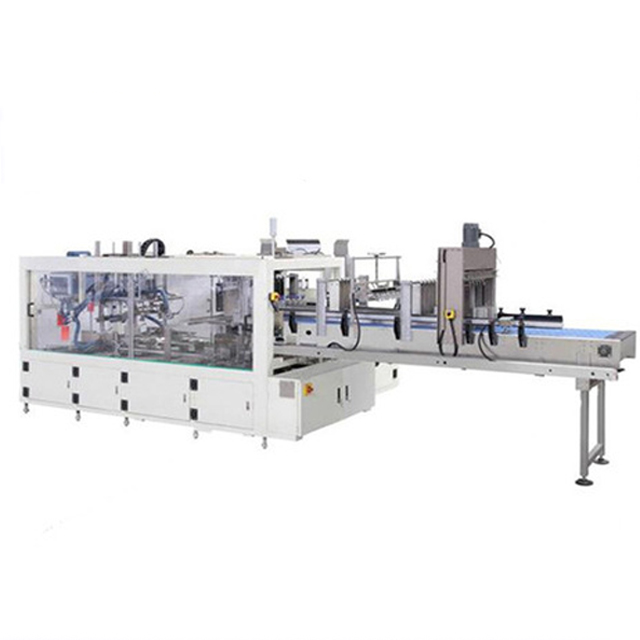

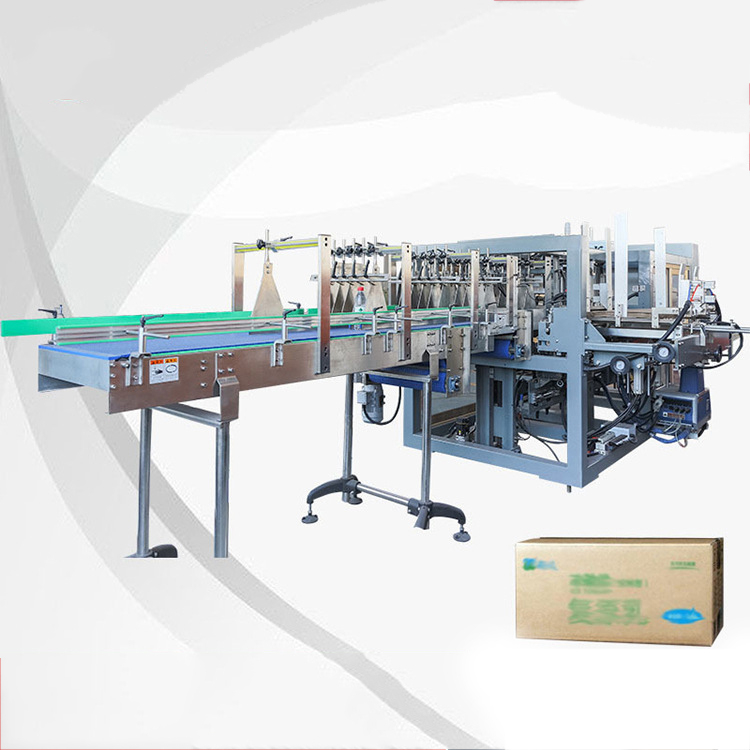

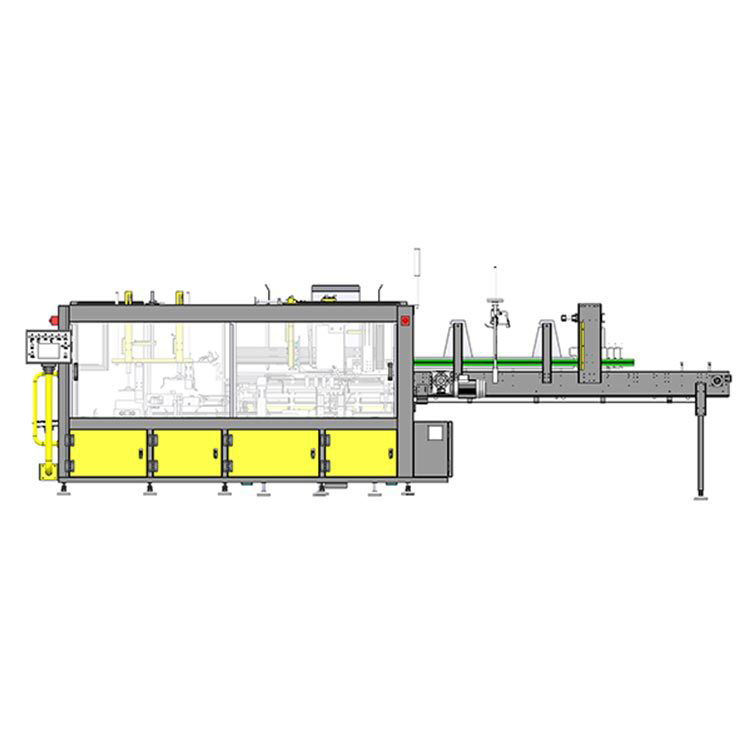

Automatic Carton Sealing And Cutting Packaging Chassis Packaging Machine

This equipment adopts servo positioning, PLC control, and fully automatic operation. The main rotation is driven by electric motors, and all levels of transmission are adjusted by chains and sprockets. It has the advantages of high degree of automation and simple adjustment. It can be widely used in beverage, beer, chemical, food, pharmaceutical and other industries. It can be used for secondary packaging of various bottles and cans and used in conjunction with automatic filling production lines.
Availability:
Quantity:
  • U-20

  • friendpack

  • 8422309090

Product Information

海报

Product Parameters

品牌

Model Automatic carton sealing and cutting packaging machine
Applicable bottle types cans, PET bottles, glass bottles
Equipment production capacity 20 bags/min
Packing form carton packing
Control power supply 24V DC
Equipment power 12KW
Compressed air 0.6Mpa, 300L/MIN
Model size length 600mmx width 210mmx height 208.8mm
Cardboard requirements meet the national standard GB/T 6544-2008
Equipment weight 3800Kg


Product Feature

Adopt the straight-in bottle method: small footprint, simplify the conveying system before the packing machine, reduce the investment cost of the whole line equipment;

2. Adopt the side-feed method: the structure is simple and reasonable, and the failure rate is small; 3. Adopting two-stage decompression: product decompression, the bottle falls smoothly, and the bottle does not jam; the product is in a state of micro-pressure and stable delivery after the packing process, and has an anti-overturning bottle structure design, and there is basically no bottle falling phenomenon; 4. Servo bottle dropping system is adopted: high positioning accuracy, accurate motion action, reduce shock and vibration during equipment operation, and greatly increase equipment operation stability


Details Images

优点

Widely Used

用途
